Opis

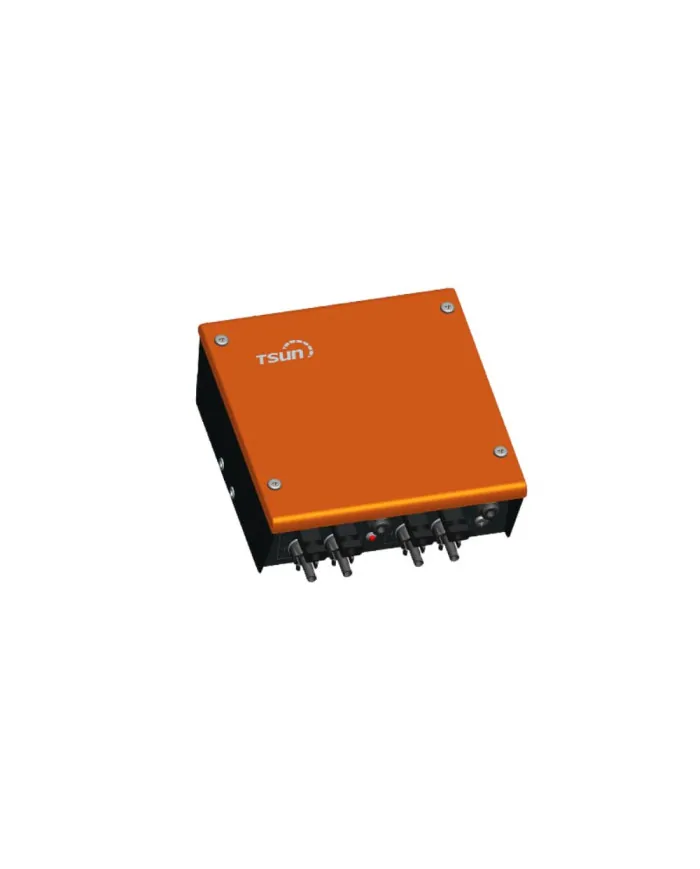

The TSUN TSOL-RSD-S1000-5 Fire Safety Switch is a crucial component for ensuring the safety and reliability of your solar power system. Designed to quickly disconnect DC power in emergency situations, this switch provides enhanced protection for both property and personnel.

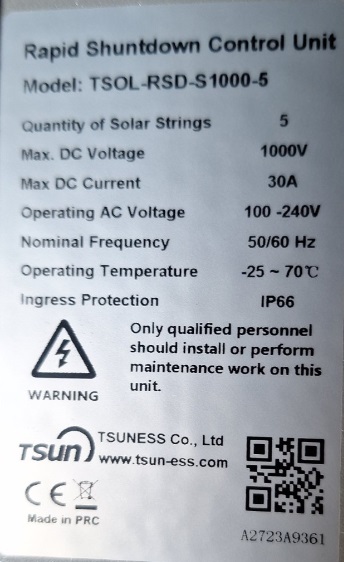

Model: TSOL-RSD-S1000-5
Number of strings: 1-10 (optional)
Maximum DC voltage: 1000V
Maximum DC current: 30A

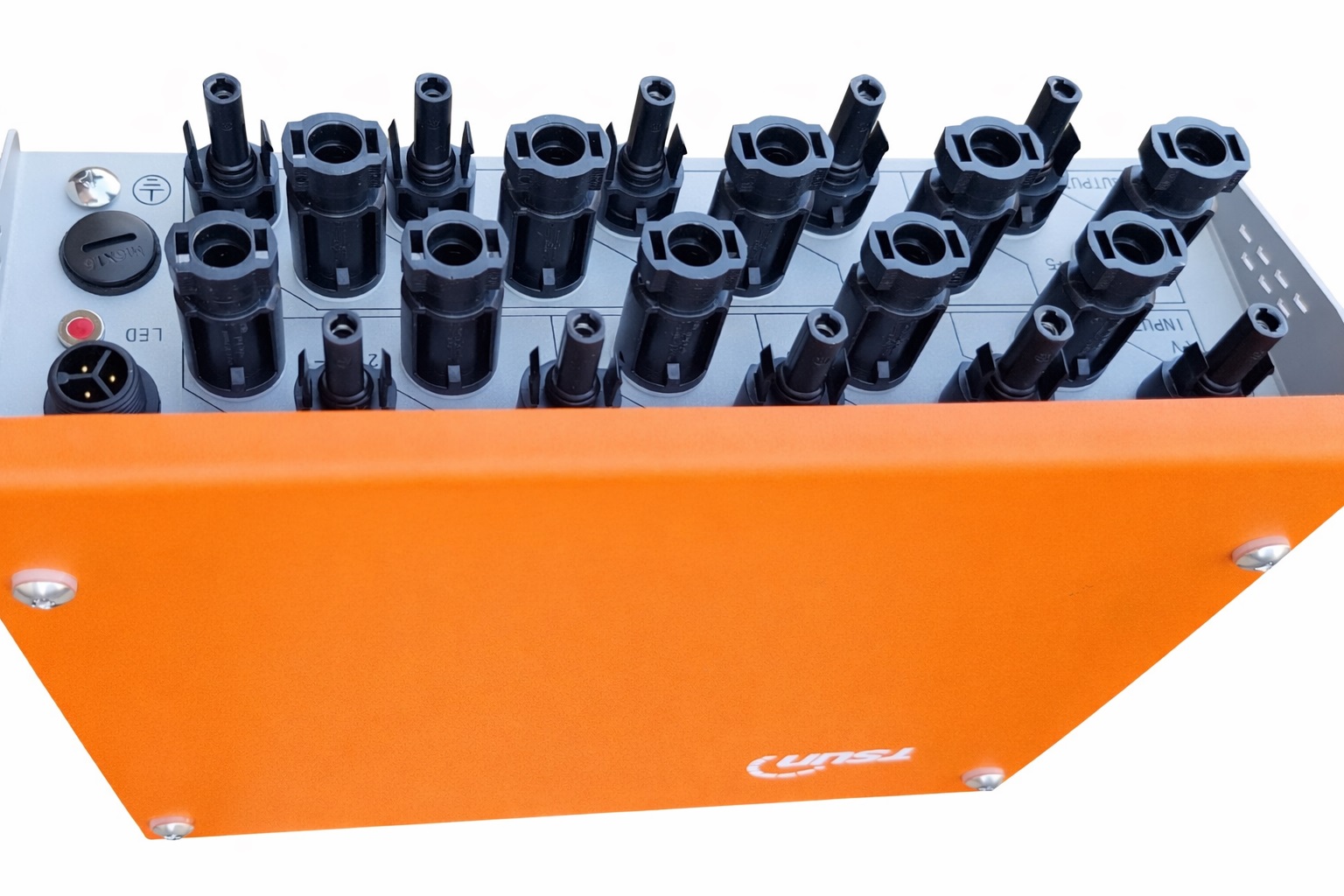

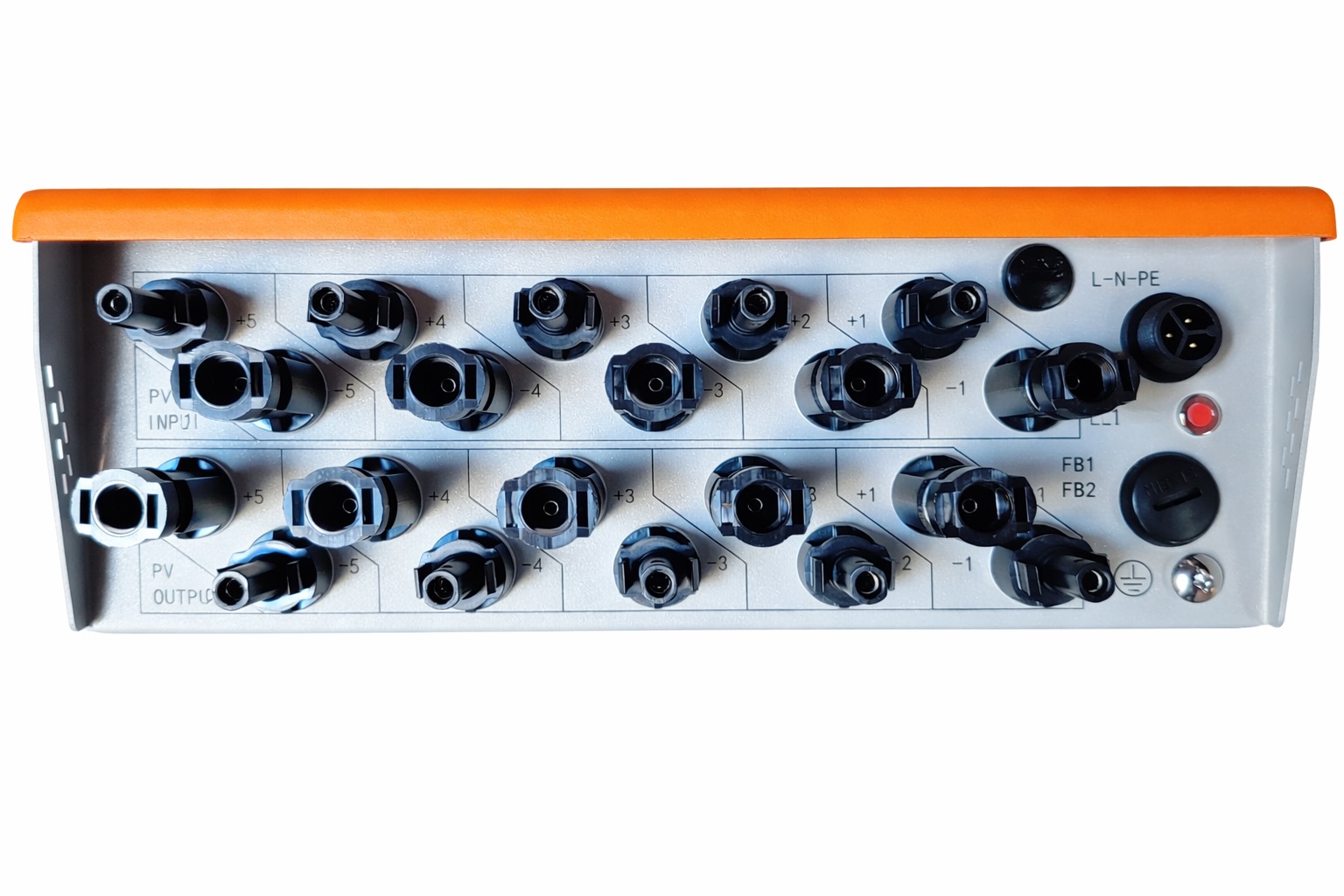

Connector type: MC4 (Solar), plug-in connector (AC power), plug-in connector (signal output, optional)
AC voltage range / normal frequency: 100-240V, 50/60 Hz
Operating temperature range: -25°C to +70°C
Automatic shutdown: When temperature exceeds +70°C
Protection level: IP66
Dimensions:
214*227*97 mm (1~2 strings)
227*269.5*107 mm (3~5 strings)
235*505*100 mm (6~10 strings)
EPS Compatibility: Can be powered by EPS output when used in a storage system.
